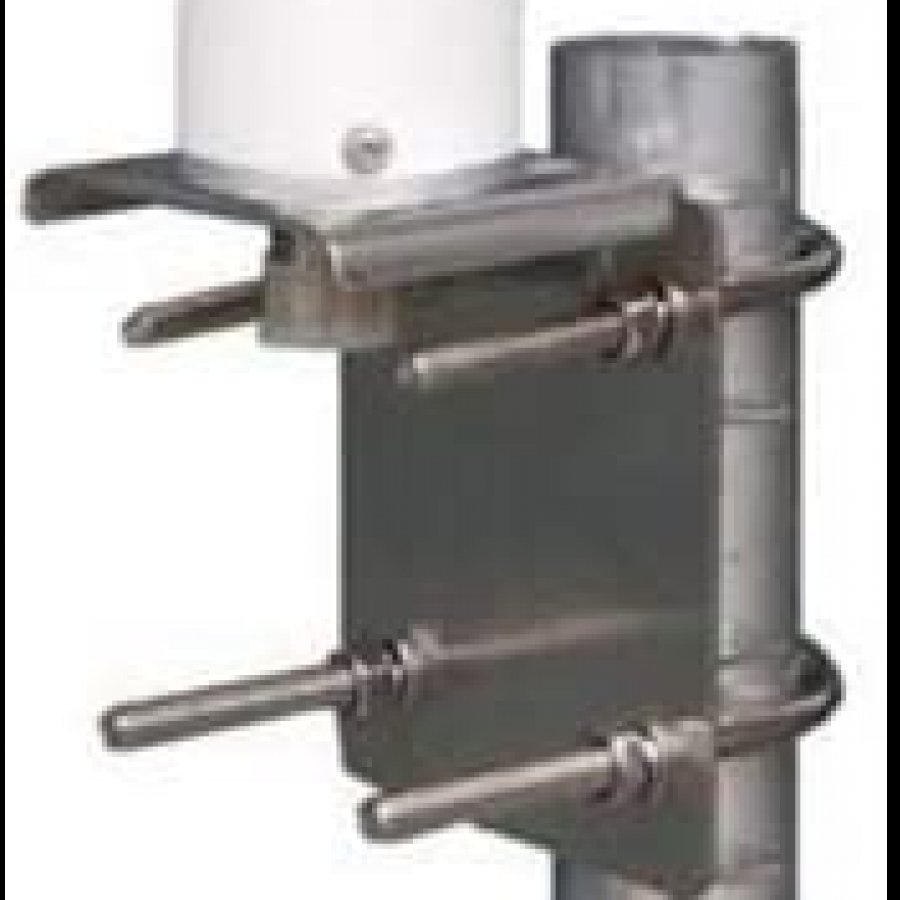

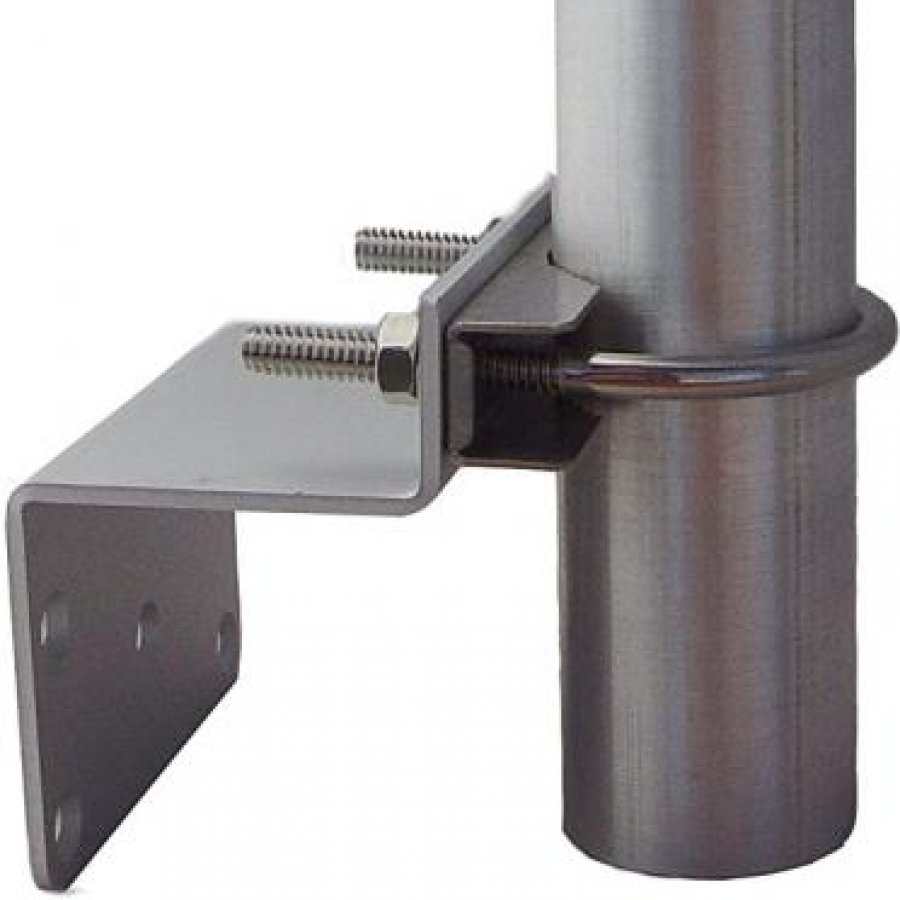

Wilson Electronics Pole Mount for Outside Home Antenna

How It Works

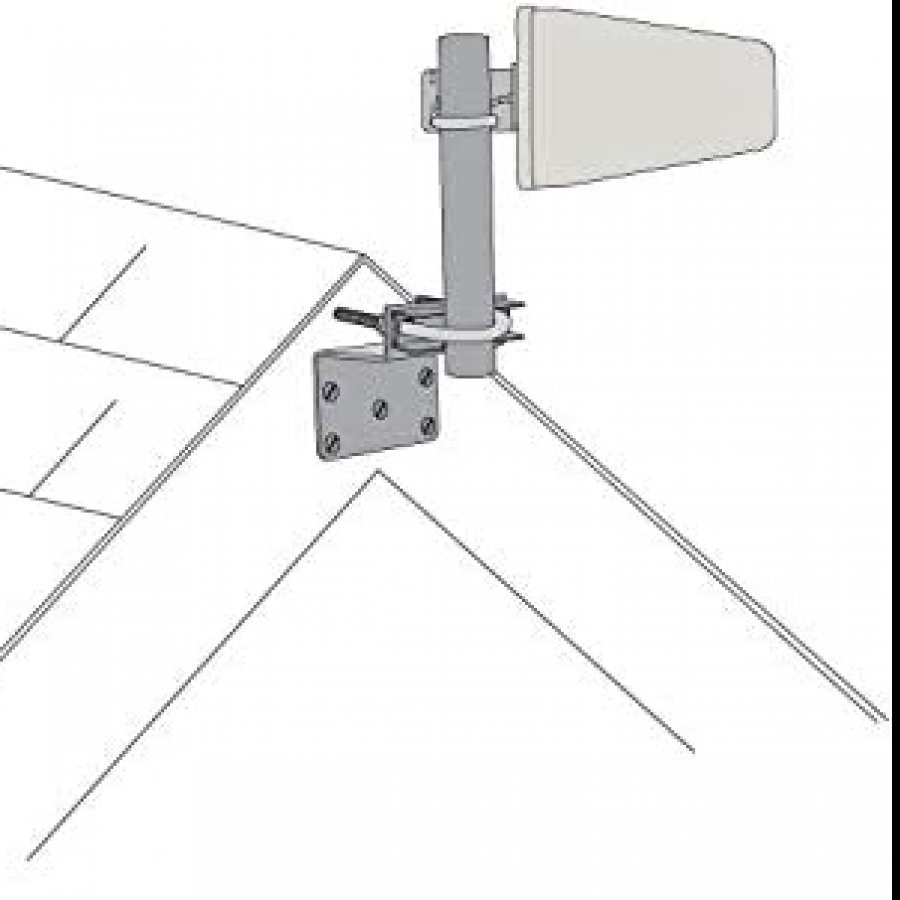

Wilson Electronics Pole Mount Assembly is to be used in conjunction with a Wilson Electronics Outdoor Antenna. The wall mounting bracket is to be mounted on a flat surface via screws. The pole can then be attached to the bracket with the pipe bracket and supplied hardware. When mounted correctly the pole will be upright, in the optimal position for a Wilson antenna to be mounted to the pole.

Package Contents

• U-Bolt
• Pole
• Pipe Bracket
• Wall Mounting Bracket
• 2-Split Washers
• 2-Nuts

Pole Mount Assemby Installation

1. Attach Wall Mounting Bracket to a flat surface or wall with screws in the 5 provided holes of the bracket.
2. Place Pipe Bracket onto the U-Bolt with the U-shapes from both parts facing each other to create a circle.
3. With the Pipe Bracket and U-Bolt assembly in hand place the Pole Mounting Bracket next to the Pipe Bracket.
4. Put the split washers over the end of U-Bolt threads.
5. Place the Nuts over the U-Bolt threads and tighten slightly to make sure none of the previously assembled components fall off the U-Bolt.
6. Place the Pipe in between the Pipe Bracket and the U-Bolt and set at desired height and tighten the nuts to secure the pipe in place.
